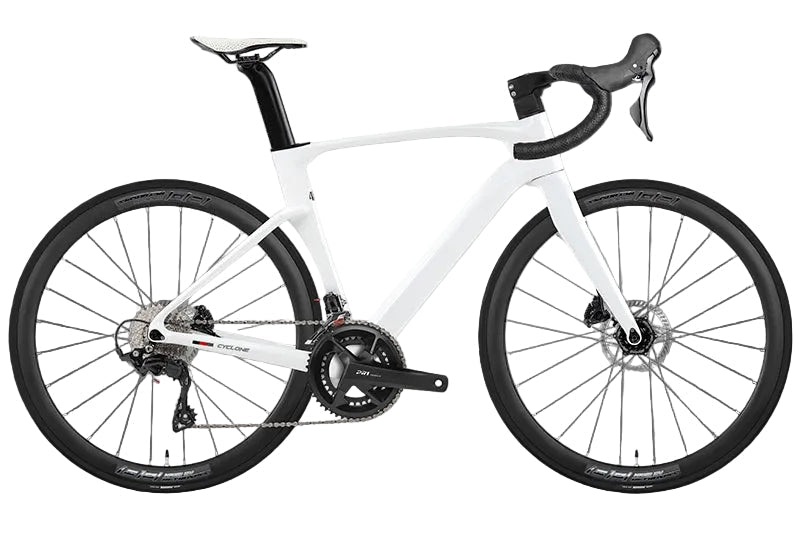

Cyclone - 3rd (R7120 Small) - Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm

• Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic / 3K Gloss Black / 3K Gloss Green

• Net Weight: 8.7 kg (Alloy Rim) / 8.5 kg (Carbon Wave Rim)

Frame & Structure

• Frame: CYCLONE-3rd (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, aerodynamic design with full internal cable routing

• Fork: CYCLONE-3rd (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow bearings

• Washer: Dedicated for internal cable routing

Drivetrain

• System: SHIMANO 105 R7120, 2×12-speed hydraulic, alloy rim

• Shifters: SHIMANO 105 R7120 2×12-speed hydraulic

• Front Derailleur: SHIMANO 105 R7100 2-speed

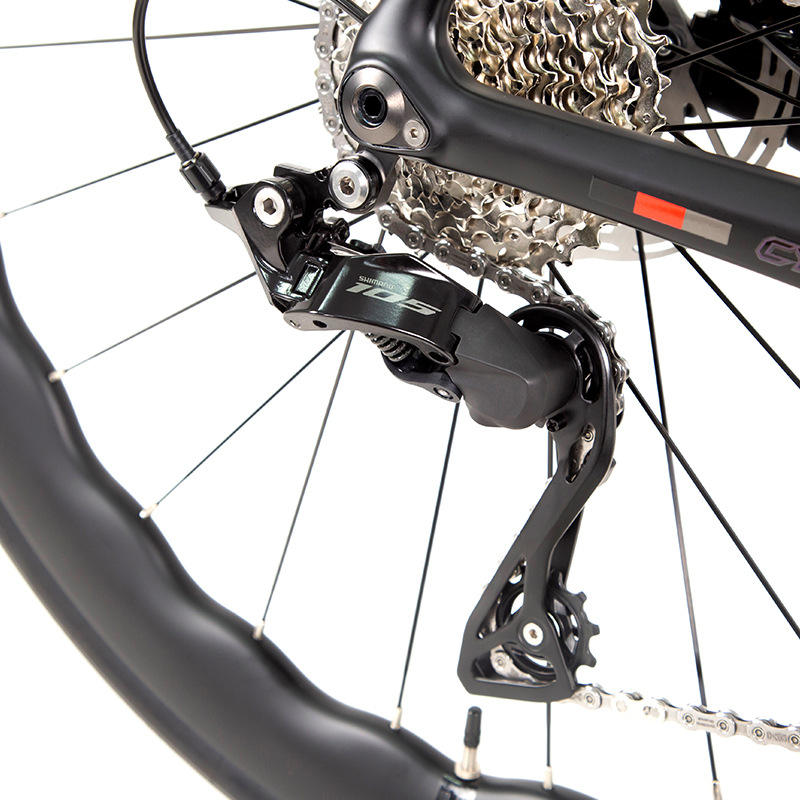

• Rear Derailleur: SHIMANO 105 R7100 12-speed

• Crankset: SENICX PR1 aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors

Wheelset & Tires

Variant 1 – Alloy Rim

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm

• Spokes: SHUNJIU circular 14G

• Tires: MAXXIS PURSUER 700×28C, foldable, lightweight, black

Variant 2 – Carbon Wave Rim (H50)

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber wave rim, W28×H50 mm

• Spokes: SHUNJIU flat 14G

• Tires: MAXXIS PURSUER 700×28C, foldable, lightweight, black

Braking System

• Brakes: SHIMANO 105 R7070 hydraulic disc, 160 mm front / 160 mm rear rotors

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
